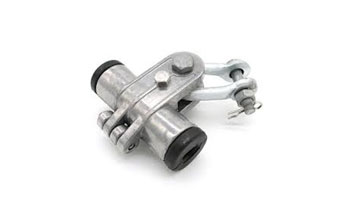

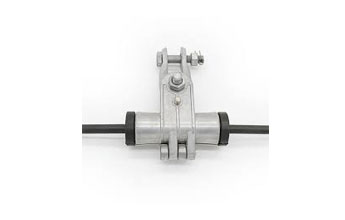

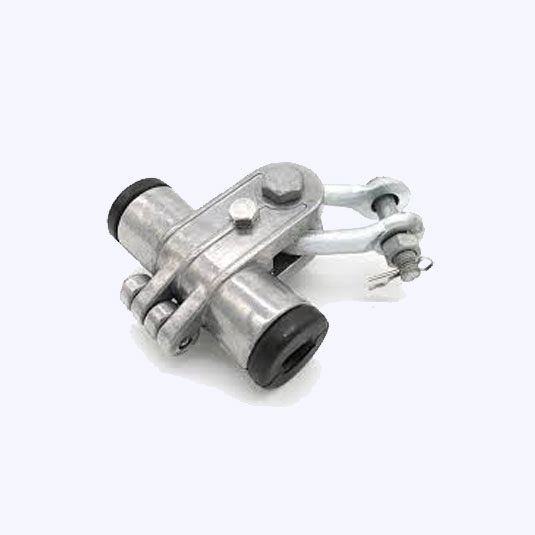

Tangent Suspension clamp for ADSS

Users can choose other connectors according to the design, such as U-ring, right angle hanging ring And so on.
It include less than 100m span tangent suspension clamp and 100m-200m span’s tangent suspension clamp.
* Advise Model No or supply drawing when enquire;

sales02@huadongcablegroup.com

Whatsapp: +86-13673609924

Get Price Services Online

Introduction

Tangent clamp is a kind of linear suspension clamp. It is mainly used to provide light, simple and low cost protection and installation clamp for small span overhead optical cable, especially suitable for the construction and transformation of urban communication network. It is mainly applicable to the installation of optical cables on short span straight towers or towers with angle less than 15 °.

Each set of tangent clamp includes: shell, rubber insert, bolt, nut, washer, etc.

Clamp made of aluminium alloy, preformed wire made of aluminium alloy, U-shackles with screw made of iron steel, Rub insert is Neoprene-RE.

Technical Index

Tangent Suspension clamp for ADSS Specification when failing load＞10KN

Model	Cable diameter(mm)	Failing load(KN)
QX-1180	9.6~11.8	＞10KN
QX-1380	11.9~13.8	＞10KN
QX-1580	13.9~15.8	＞10KN

Tangent Suspension clamp for ADSS Specification when failing load＞30KN

Model	Cable diameter(mm)	Failing load(KN)
QX-1000	9.5-10	＞30KN
QX-1110	10.1-11.1	＞30KN
QX-1220	11.2-12.2	＞30KN
QX-1330	12.3-13.3	＞30KN
QX-1440	13.4-14.4	＞30KN
QX-1550	14.5-15.5	＞30KN
QX-1660	15.6-16.6	＞30KN
QX-1770	16.7-17.7	＞30KN
QX-1880	17.8-18.8	＞30KN
QX-1990	18.9-19.9	＞30KN
QX-2100	20-21	＞30KN
QX-2220	21.1-22	＞30KN
