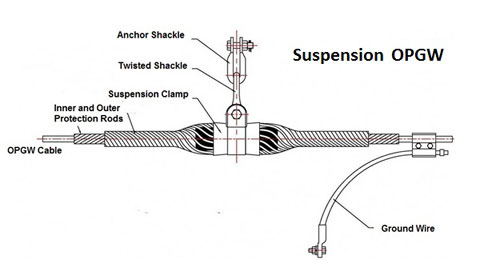

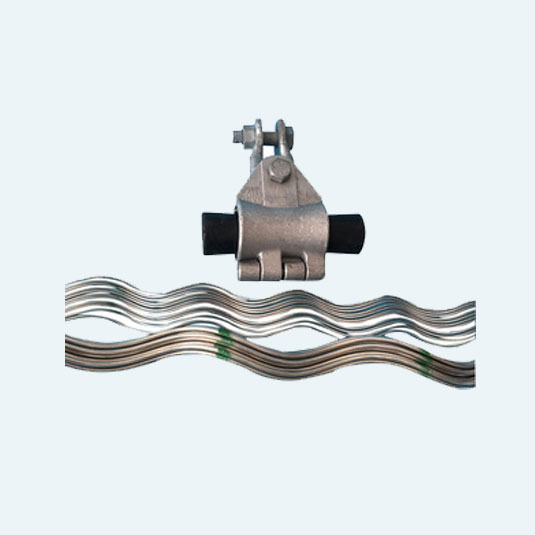

Preformed Suspension Clamp Set for OPGW/ADSS

Specifications
OPGW grip diameter: 13.5 mm
Armoured rod (inner): dia 3 mm x length 12 mm
Lay direction: (right hand weight: 0.650 (kg)
* Advise Model No or supply drawing when enquire;

sales02@huadongcablegroup.com

Whatsapp: +86-13673609924

Get Price Services Online

Introduction

ADSS Optical Cable Introduction

ADSS Optical Cable full name All-dielectric Self-supporting Optical Cable

All dielectric means that all dielectric materials are used for optical cables.

Self supporting type refers to the self reinforcing component of optical cable can bear the self weight and external load.

The use of all dielectric materials is due to the fact that the optical cable is in the high-voltage and strong current environment and must be able to withstand the impact of strong electricity; because it is used overhead on the power tower, it must have supporting hangers to fix the optical cable on the tower.

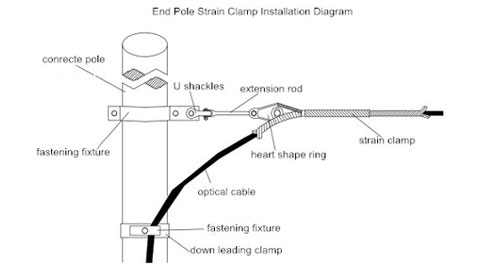

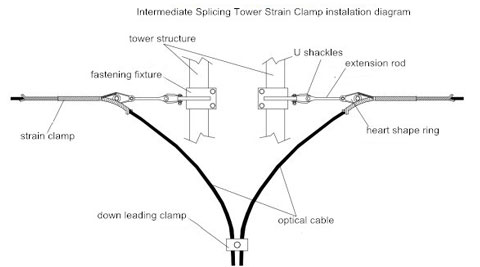

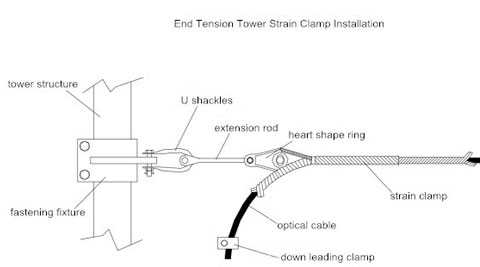

ADSS cable has three key technologies: mechanical design of cable, determination of suspension point and selection and installation of supporting hardware.

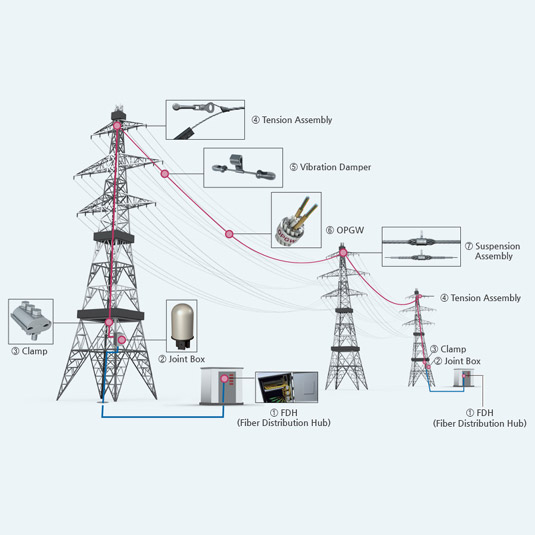

OPGW Optical Cable Introduction

The optical fiber is placed in the ground wire of the overhead high voltage transmission line to form the optical fiber communication network on the transmission line. This structure has both the function of ground wire and communication, which is generally called OPGW optical cable.

Due to the characteristics of anti electromagnetic interference and light self weight, optical fiber can be installed on the top of transmission line tower without considering the optimal hanging position and electromagnetic corrosion.

Therefore, it has higher reliability, superior mechanical properties and lower cost. This technology is particularly suitable and economical for new laying or replacement of existing ground wires.

Technical Index

Technical Data Preformed Suspension Clamp Set for OPGW

Model	OPGW Diameter(mm)	Failing load (KN)
ON-1110	10~11.1	40	70	~
ON-1220	11.2~12.2	40	70	100
ON-1330	12.3~13.3	40	70	100
ON-1440	13.4~14.4	40	70	100
ON-1550	14.5~15.5	40	70	100
ON-1660	15.6~16.6	40	70	100
ON-1770	16.7~17.7	40	70	100
ON-1880	17.8~18.8	40	70	100
ON-1990	18.9~19.9	40	70	100
ON-2100	20~21	40	70	100
ON-2200	21.1~22	40	70	100

Preformed Suspension Clamp Set for ADSS Technical Data

ATX-1000	ADSS diameter(mm)	Failing load (KN)
ATX-1110	9.5-10	200	~	~	~	~	~
ATX-1220	10.1-11.1	200	300	400	~	~	~
ATX-1330	12.3-13.3	200	300	400	500	~	~
ATX-1440	13.4-14.4	200	300	400	500	600	700
ATX-1550	14.5-15.5	200	300	400	500	600	700
ATX-1660	15.6-16.6	200	300	400	500	600	700
ATX-1770	16.7-17.7	200	300	400	500	600	700
ATX-1880	17.8-18.8	200	300	400	500	600	700
ATX-1990	18.9-19.9	200	300	400	500	600	700
ATX-2110	20-21	200	300	400	500	600	700
ATX-2220	21.1-22	200	300	400	500	600	700
