Trunnion for OPGW

The trunnion support clamp is used to secure the OPGW cable to a trunnion type bracket configuration. Either mounted directly to the tower or an insulator, the clamp provides enough force to maintain the designed slip load without causing cable attenuation.

 Introduction

Trunnion for OPGW Details:

The trunnion support clamp is used to secure the OPGW cable to a trunnion type bracket configuration. Either mounted directly to the tower or an insulator, the clamp provides enough force to maintain the designed slip load without causing cable attenuation.

Trunnion for OPGW Features:

  • • Easy installation without removal of keeper bolts.Break-away head bolts ensure proper installation torque.
  • • Clamp assembly includes Armor Rod set.
  • • Weight: 3.5 lbs. (1.6 kg)
  • • Line angles up to 20

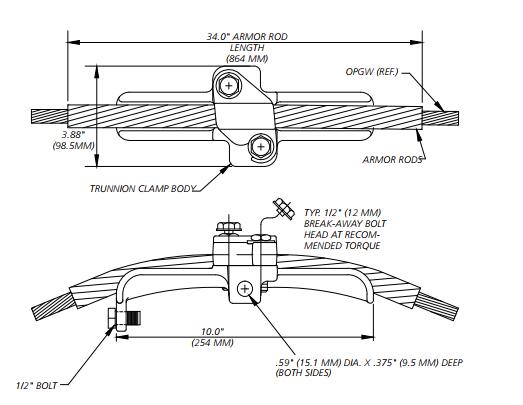

Trunnion for OPGW

 Technical Index

Trunnion for OPGW Specifications :

HuaDong NO. OPGW CABLE DIAMETER RANGE
INCHES MILLIMETERS
OTR421/449G .421 - .449 10.69 - 11.40
OTR450/475G .450 - .475 11.43 - 12.07
OTR476/499G .476 - .499 12.09 - 12.67
OTR500/527G .500 - .527 12.70 - 13.39
OTR528/555G .528 - .555 13.41 - 14.10
OTR556/584G .556 - .584 14.12 - 14.83
OTR585/614G .585 - .614 14.86 - 15.60
OTR615/646G .615 - .646 15.62 - 16.41
OTR647/679G .647 - .679 16.43 - 17.25
OTR680/714G .680 - .714 17.27 - 18.14
OTR715/750G .715 - .750 18.16 - 19.05
