cold shrinkable cable accessories/kits/termination

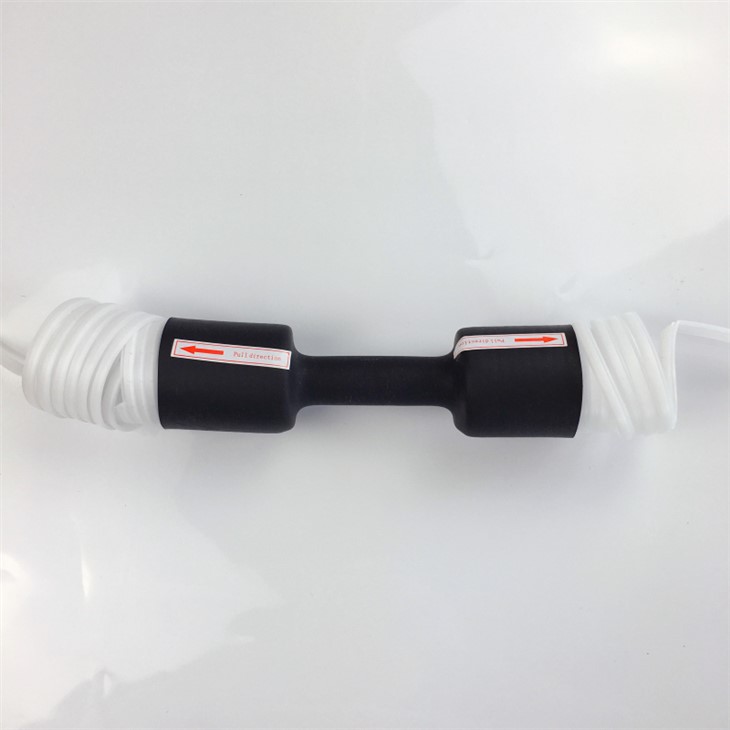

Cold shrink cable accessories is a part of cable accessories that is formed by using an elastomer material for injection molding in a factory, and then expanding the diameter and lining the plastic spiral support.

manager@huadongcablegroup.com

Whatsapp: +86 139 3907 0673

Get Price Services Online

Introduction

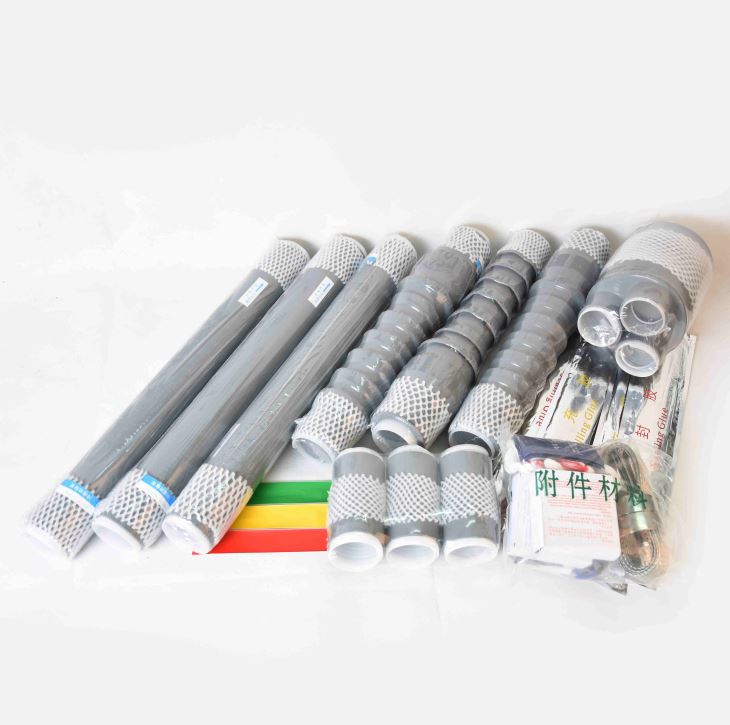

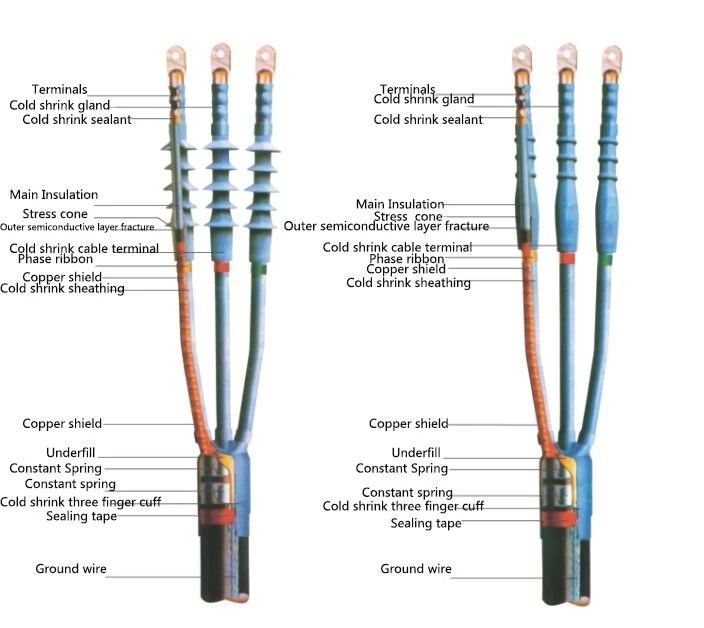

Cable accessories outdoor cold shrink termination offers easy installation and reliable performance when terminating indoor and outdoor medium voltage cables. the Cold Shrinkable Termination offers a combination of durability and high performance in the field.The products are designed to last the entire life of the cable.

Material: High-elasticity silicon rubber; Applicable voltage: 20/24KV, Choice: single core or three core; wide application range, strong anti-natural aging ability, durable anti-fouling and long service life.

1KV Cold shrinkable cable accessories are made of liguid silicone rubber vulcanization molding injection factory, then by extension, lined with plastic spiral support for the various cable attachment parts, onsite insulation.

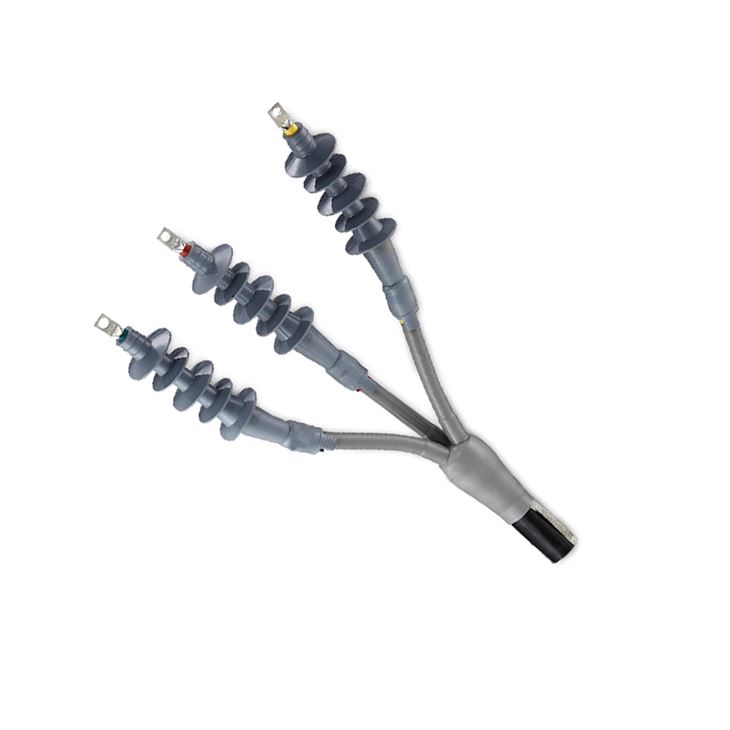

20kv silicone rubber cold shrink cable termination kits for outdoor cable terminations are made of liquid silicone rubber. It has the characteristics of reliable insulation, simple installation process, wide application range.

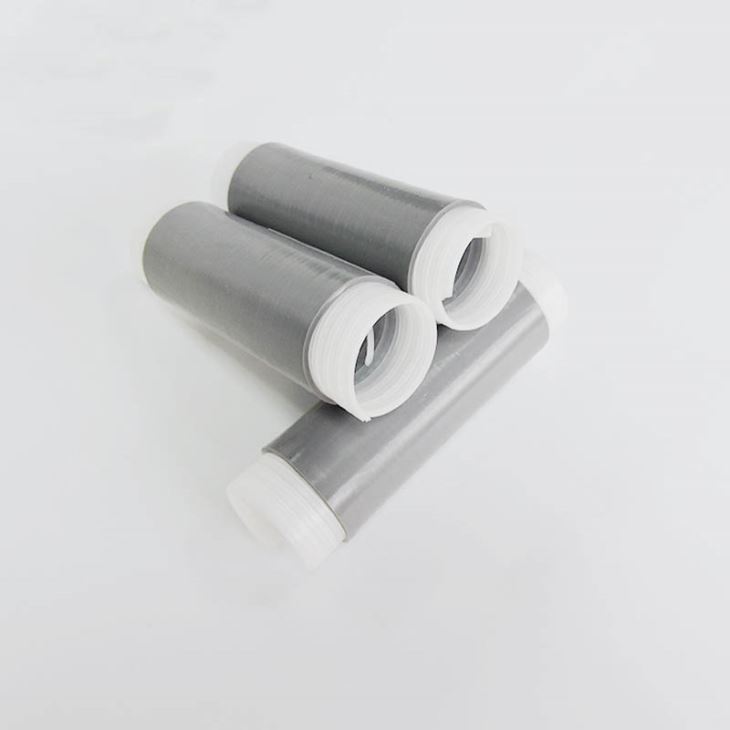

Waterproof Silicone Rubber Cold Shrink Pre Stretched Tube, is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance.

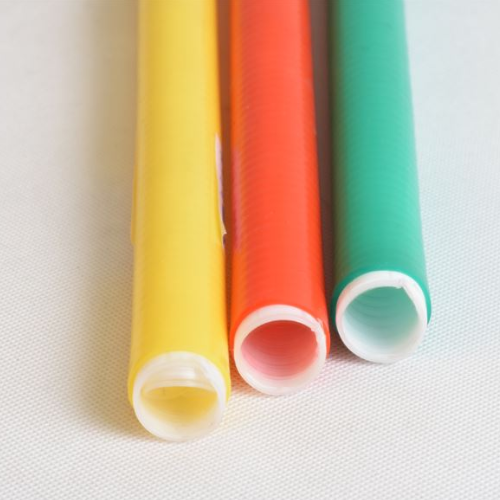

EPDM cold shrinking tubing non-slip EDPM cold shrinkable tube High Performance Silicone,Application: Low voltage

Type: insulation sleeving

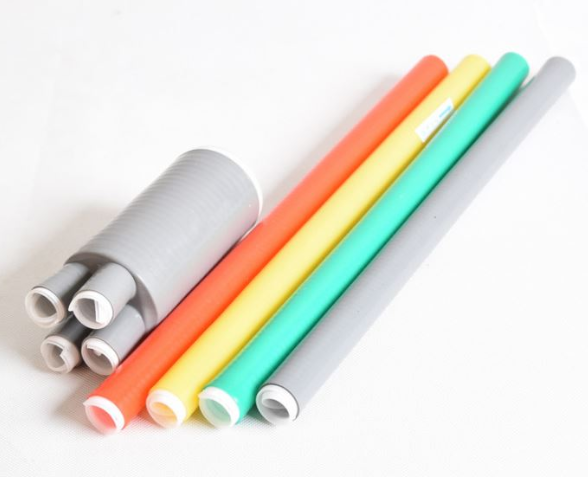

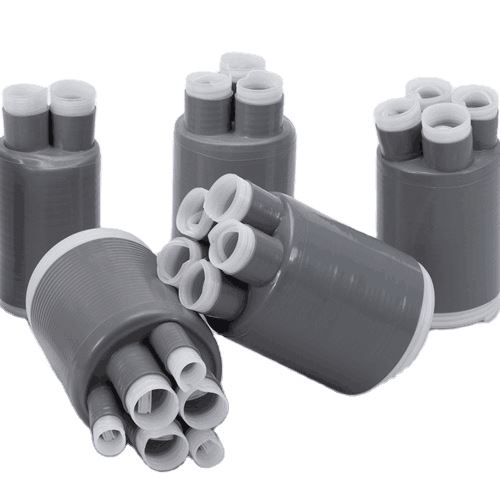

High Voltage 3-6 Cores Cold Shrink Silicone Rubber Breakout Sleeve it's a new technology of shrink, dispense with using fire or others special tools. Only need to draw out the wires,

Technical Index

Item	Parameters
Voltage Class	15 kV		25kV		35 kV
Voltage Rating	6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV		12/20 (24) kV, 12.7/22 (24) kV,		18/20 (24) kV,18/30 (36) kV, 20.8/36 (42) kV, 21/35 (40.5) kV, 26/35 (40.5)
Installation Site	Indoor	Outdoor	Indoor	Outdoor	Indoor	Outdoor
AC Withstand Voltage 5min	39 kV	39 kV	54 kV	54 kV	117kV	117kV
DC Withstand Voltage 15min	35 kV	35 kV	48 kV	48 kV	104kV	104kV
Moisture Test	11 kV for 300h	-	15 kV for 300h	-	32.5kV for 300h	-
Wet AC Withstand Voltage 1min	-	35 kV	-	48 kV	-	65 kV
Salt Fog Test	-	11kV for 1000h	-	15kV for 1000h	-	32.5kV, 1000h
Partial Discharge	15 kV, ≤10 pC	15 kV, ≤10 pC	20kV, ≤10 pC	20kV, ≤10 pC	45kV, ≤10pC	45kV, ≤10pC
BIL	95 kV	95 kV	125 kV	125 kV	200kV	200kV
Cable Section	25 to 400 mm²	25 to 400 mm²	25 to 500 mm²	25 to 500 mm²	50to 630 mm²	50 to 630 mm²
