Mini Brackets and Formed Wire Tangent Supports

 Introduction

Mini Brackets and Formed Wire Tangent Supports Description:

Mini Brackets are used for short and medium spans of ADSS fiber optic cable as well as Aerial Drop cables. Mini Brackets are sized to fit specific ADSS diameters. Standard Mini Brackets are employed with fitted bushings to provide a good support/groove fit and to prevent the support from damaging the cable. The bolted supports are supplied with aluminum captive bolts to simplify installation with no loose parts.

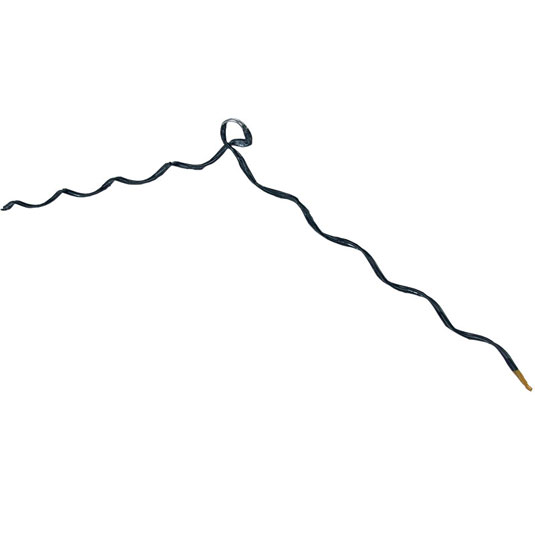

Formed Wire Tangent Supports (FTS) are used with ADSS Mini-Span 323 and Mini- Span 383 for short span applications. Tangent supports provide a method of attaching HuaDong’s smallest ADSS Mini-Span designs with excellent unbalanced load capability and bend relief support. This product is designed to connect directly to J-hooks on wood poles for an economical solution.

Mini Brackets and Formed Wire Tangent Supports Features：

• Maximum one side angle: 8 5 degrees
• Estimated weight: 2 9 lbs (1 3 Kg)
• Maximum rated strength: 3,000 lbs
• Hand tighten bolt to 25 in lbs (2 8 N-m)
• Slip load at 4 to 6% of RBS
